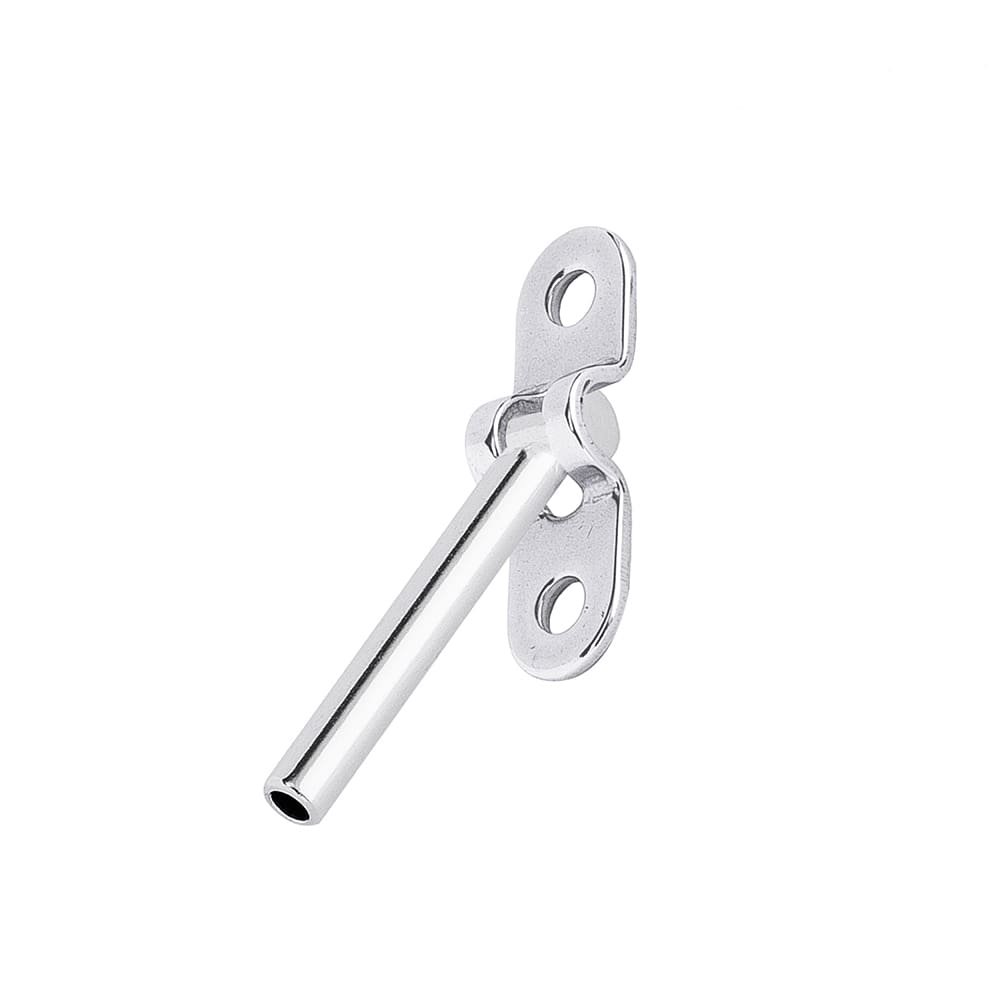

Stainless Steel Surface Mount Toggle End fitting

Description

The Surface Mount Toggle End fitting is the terminal end of our SURFACE MOUNT TOGGLE ASSEMBLY. This assembly requires 2 Phillips Pan Head Screws (sold separately) for installation: #12 x 1.25 for 1/8″ fittings or #14 x 1.25 for 3/16″ fittings.

Benefits / Technical Information:

• Material: 316 Stainless Steel.
• Mounts directly to most surfaces, including metal and wood posts. Use 2 #12 x 1.25 Pan Head Screws for 1/8″ fittings or 2 #14 x 1.25 Pan Head Screws for 3/16″ fittings.
• 3″ cable spacing is recommended. Order 11 terminal ends per run for 36″ systems, or 13 per run for 42″ systems.

See number “2” in the above drawing to see how the SURFACE MOUNT TOGGLE END is used in the wire rope cable assembly.
